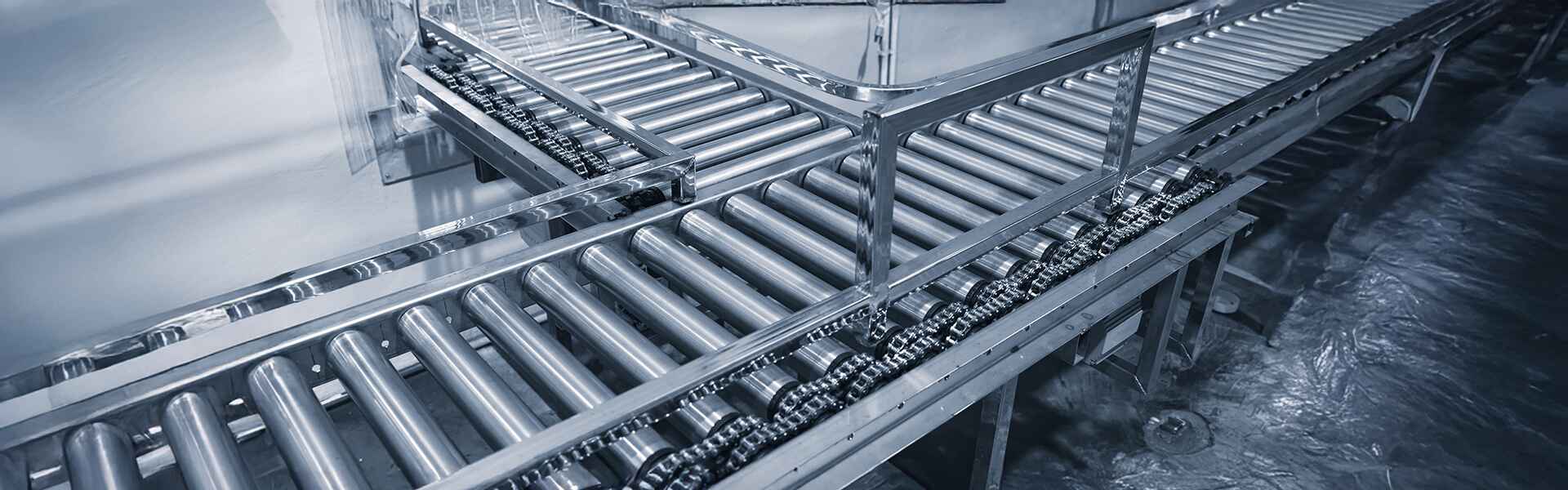

What is a Roller Conveyor System? How Does it Work?
Walk into any modern factory and you’ll see conveyors doing the heavy lifting. They’re not flashy, but they keep goods moving; without them, most lines would stall. The demand for conveyors is only rising.
Industry studies suggest the conveyor system market could cross USD 12.6 billion by 2032 (Source), and roller conveyors form a big part of that story.
Why roller conveyors? Because they’re sturdy, adaptable, and designed to handle everything from small cartons to bulky pallets in secondary packaging lines.
What Is a Roller Conveyor System?
Think of it as a simple frame with a series of rollers lined up. Place a carton on top, and it moves forward, either by gravity or with the help of powered drives. That’s the basic idea. It is not the simplicity that has made roller conveyors a big part of packaging and distribution. It is the flexibility.
Unlike belt conveyors, designed with one consistent moving surface, rollers simply carry the load. This makes them more dependable and robust when dealing with rigid, heavy products that rely on proper distribution.
How Do Roller Conveyor Systems Operate?
There are two types of systems:
- Gravity Roller Conveyors: They do not require motors. Simply put a small slope on the roller conveyor, and gravity takes care of the rest.
Alligator Automations designs are built for heavy-duty performance, with robust frames and optimized roller spacing, so cartons can move freely without sudden stop-and-go moments. Gravity roller conveyors are used where power is either not suitable or not needed, such as in accumulation zones or in transfer zones, or if packages need to keep flowing. - Powered Roller Conveyors: In this design, the rollers are powered in some way. It can be through a belt system, a chain system, or a roller driven by an electric motor.
Alligator provides both chain-driven and motorized roller conveyor options, giving end-users more control over speed and flow. These are the conveyors that link seamlessly with palletizers, case packers, or sortation systems. Their build quality allows them to run continuously, even with heavy-duty loads.
The most advantageous aspect of both varieties is their modularity. Straight runs, curves, and merges; use them in any combination as the situation requires. Also, if your plant layout changes down the road, you can modify sections instead of removing and replacing sections.
Gravity vs Powered: What’s the Difference?
Here’s a quick comparison to highlight the strengths of each system:
Feature | Gravity Roller Conveyor | Powered Roller Conveyor |
Energy Use | No external power, relies on the slope | Requires motor or chain drive |
Flow Control | Limited, product speed depends on the incline | Full control over speed and accumulation |
Load Handling | Suited for light to medium loads | Handles everything up to heavy pallets |
Integration | Works as a standalone or storage transfer | Integrates with automated packaging lines |
Maintenance | Very low | Moderate (due to motorized components) |
Points to Weigh Before Choosing a Roller Conveyor
Every operation is different, and picking the right system makes a big difference to long-term efficiency. There are a couple of considerations to keep in mind:
- Load Capacity: Each roller has a load capacity associated with it. If you overestimate your “average” load, you could experience bent rollers, increased downtime, or increased costs. Always center the rating on the heaviest product you will move.
- Roller Material: Steel is reliable; stainless steel works best for humid or washdown environments; rollers with coatings lower friction created by misalignment and will reduce scuff marks on printed cartons.
- Drive Method: Gravity saves power and is simple to maintain, but powered conveyors give you the accuracy and integration most automated plants now need. The choice often comes down to whether the line is manual, semi-automated, or fully automated.
- Layout: Straight runs are relatively easy to design a solution for. However, many plants will require curves, merges, or accumulation zones. Properly thought through, the layout will prevent bottlenecks and provide adequate space to allow operators to move around safely.
- Integration: Finally, today’s conveyors rarely run independently of other systems. A conveyor must work as part of a system with case packers, palletizers, and, in some cases, automated storage. Choosing to implement a system designed for integration saves time, resulting in better downtime and smooth transitions of product through the packing process into the warehouse.
Why Conveyors Matter in Packaging?
A roller conveyor system is more than just a means of moving cartons or bags from point A to point B. It is the lifeblood of plant flow. Gravity conveyors give a low-cost, reliable option, while powered solutions allow for control and speed in slower, complicated lines. Leverage a combination of these types of conveyors to minimize manual handling, reduce errors, and keep production flowing.
At Alligator Automations, roller conveyors provide solutions to complement an entire system you may need. It is part of their complete secondary packaging palletizing, case packing, and end-to-end offer. What they offer is straightforward: one partner, one integrated system, and a flow of operations from end to end.
Ready to upgrade your line?
Reach out to us to build a conveyor system that will stand the test of time.
FAQs
1) What is a roller conveyor system?
A roller conveyor system is a conveyor that is constructed from rollers supported on a frame that moves goods using either gravity or powered drives.
2) How does a roller conveyor system work?
The action of rotating the roller allows products to move along the roller conveyor. The rollers can move on a slope with gravity, or be powered by a roller with a motor or chain.
3) What types of roller conveyor systems are there?
The main types of roller conveyor systems are gravity roller conveyors and powered roller conveyors, which can be chain-driven or motorized.
4) Where are roller conveyor systems commonly used?
A roller conveyor system can be found in secondary packaging, logistical companies, automotive, warehouse, or distribution centers.
5) Can roller conveyors move heavier loads?
Yes. Powered roller conveyors are built for heavy-duty handling, including pallets, drums, and filled bags.
